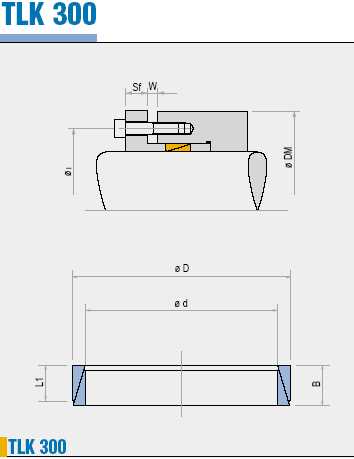

Svěrná hřídelová spojení
|
|
Rozměry |
Předepínaci
síla |
Korutící
moment |
Axiální
síla |
Upínací vzdálenost
W
před utažením šroubů |
Distanční kroužek |
Tlaky na |
|
dxD |
B |
L1 |
Pt |
Mt |
Fa |
1 |
2 |
3 |
4 |
Vnitřní
d1 |
Vnější
D1 |
hřídel
pw |
náboj
pn |
| mm |
mm |
mm |
N |
Nm |
KN |
mm |
mm |
mm |
mm |
mm |
mm |
N/mm2 |
N/mm2 |
6x9
7x10
8x11 |
4,5
4,5
4,5 |
3,7
3,7
3,7
|
-
-
- |
2
3
5 |
0,84
0,86
1,17 |
2,5
2,5
2,5 |
2,5
2,5
2,5 |
3
3
3 |
4
4
4 |
6,1
6,1
6,1 |
8,9
9,9
10,9 |
115
105
120 |
75
70
90 |
9x12
10x13
12x15 |
4,5
4.5
4,5 |
3,7
3,7
3.7 |
7650
7000
7000 |
8
10
11 |
1.76
1.91
1.91 |
2.5
2.5
2.5 |
2.5
2.5
2.5 |
3.0
3.0
3.0 |
4.0
4.0
4.0 |
9.1
10.1
12.1 |
11.9
12.9
14.9 |
140
135
115 |
105
105
90 |
13x16
14x18
15x19 |
4,5
6.3
6.3 |
3.7
5.3
5.3 |
6500
11000
10800 |
13
22
24 |
2.02
3.18
3.24 |
2.5
3.5
3.5 |
2.5
3.5
3.5 |
3.0
4.5
4.5 |
4.0
5.5
5.5 |
13.1
14.1
15.1 |
15.9
17.9
18.9 |
110
115
110 |
90
90
85 |
16x20
17x21
18x22 |
6.3
6.3
6.3 |
5.3
5.3
5.3 |
10000
9600
9150 |
27
30
32 |
3.42
3.51
3.61 |
3.5
3.5
3.5 |
3.5
3.5
3.5 |
4.5
4.5
4.5 |
5.5
5.5
5.5 |
16.1
17.1
18.1 |
19.9
20.9
21.9 |
105
105
100 |
85
85
80 |
19x24
20x25
22x26 |
6.3
6.3
6.3 |
5.3
5.3
5.3 |
12500
12000
9000 |
49
53
66 |
5.22
5.33
6.00 |
3.5
3.5
3.5 |
3.5
3.5
3.5 |
4.5
4.5
4.5 |
5.5
5.5
5.5 |
19.2
20.2
22.2 |
23.8
24.8
25.8 |
140
135
135 |
110
105
115 |
24x28
25x30
28x32 |
6.3
6.3
6.3 |
5.3
5.3
5.3 |
8400
10000
7500 |
73
72
88 |
6.13
5.77
6.33 |
3.5
3.5
3.5 |
3.5
3.5
3.5 |
4.5
4.5
4.5 |
5.5
5.5
5.5 |
24.2
25.2
28.2 |
27.8
29.8
31.8 |
130
115
115 |
110
95
100 |
30x35
32x36
35x40 |
6.3
6.3
7.0 |
5.3
5.3
6.0 |
8600
7900
10000 |
91
131
171 |
6.08
8.24
9.77 |
3.5
3.5
3.5 |
3.5
3.5
3.5 |
4.5
4.5
4.5 |
5.5
5.5
5.5 |
30.2
32.2
35.2 |
34.8
35.8
39.8 |
100
130
125 |
85
115
110 |
36x42
38x44
40x45 |
7.0
7.0
8.0 |
6.0
6.0
6.6 |
11700
11000
13900 |
169
181
231 |
9.39
5.55
11.57 |
3.5
3.5
3.5 |
3.5
3.5
4.5 |
4.5
4.5
5.5 |
5.5
5.5
6.5 |
36.2
38.2
40.2 |
41.8
43.8
44.8 |
115
110
115 |
100
95
105 |
42x48
45x52
48x55 |
8.0
10.0
10.0 |
6.6
8.6
8.6 |
15550
28300
24700 |
235
353
572 |
11.22
15.71
23.84 |
3.5
3.5
3.5 |
4.5
4.5
4.5 |
5.5
5.5
5.5 |
6.5
6.5
6.5 |
42.2
45.2
48.2 |
47.8
51.8
54.8 |
110
105
155 |
95
95
135 |
50x57
55x62
56x64 |
10.0
10.0
12.0 |
8.6
8.6
10.4 |
23600
21700
29500 |
602
670
790 |
24.08
24.35
28.20 |
3.5
3.5
3.5 |
4.5
4.5
4.5 |
5.5
5.5
5.5 |
6.5
6.5
7.0 |
50.2
55.2
56.2 |
56.8
61.8
63.8 |
150
140
130 |
130
125
115 |
60x68
63x71
65x73 |
12.0
12.0
12.0 |
10.4
10.4
10.4 |
27500
26500
25500 |
860
910
950 |
28.60
28.80
29.20 |
3.5
3.5
3.5 |
4.5
4.5
4.5 |
5.5
5.5
5.5 |
7.0
7.0
7.0 |
60.2
63.2
65.2 |
67.8
70.8
72.8 |
125
120
115 |
110
105
100 |
70x79
71x80
75x84 |
14.0
14.0
14.0 |
12.2
12.2
12.2 |
31000
31000
34700 |
1380
1400
1450 |
39.40
39.40
38.60 |
3.5
3.5
3.5 |
5.0
5.0
5.0 |
6.5
6.5
6.5 |
7.5
7.5
7.5 |
70.3
71.3
75.3 |
78.7
79.7
83.7 |
125
120
115 |
110
110
100 |
80x91
85x96
90x101 |
17,0
17.0
17.0 |
15.0
15.0
15.0 |
48000
45500
43500 |
2200
2400
2730 |
55.00
56.40
60.50 |
4.0
4.0
4.0 |
6.0
6.0
6.0 |
6.5
6.5
6.5 |
8.0
8.0
8.0 |
80.3
85.3
90.3 |
90.7
95.7
100.7 |
125
120
120 |
105
105
105 |
95x106
100x114
110x124 |
17.0
21.0
21.0 |
15.0
18.7
18.7 |
41300
61000
66000 |
3050
4200
5150 |
64.20
84.00
93.60 |
4.0
5.0
5.1 |
6.0
6.0
6.0 |
6.5
7.0
7.0 |
8.0
9.0
9.0 |
95.3
100.3
110.3 |
105.7
113.7
123.7 |
120
120
120 |
110
105
105 |
120x134
130x148
140x158 |
21.0
28.0
28.0 |
18.7
25.3
25.3 |
60300
96300
89000 |
6050
9600
11000 |
100.80
147.60
158.50 |
5.0
5.0
6.0 |
6.0
7.0
7.0 |
7.0
9.0
9.0 |
9.0
11.0
11.0 |
120.2
130.4
140.4 |
133.7
147.6
157.6 |
120
120
120 |
105
105
105 |
150x168
160x178
170x191 |
28.0
28.0
33.8 |
25.3
25.3
30.0 |
85000
78600
117400 |
12900
14600
19500 |
172.00
182.50
229.00 |
6.0
6.0
7.0 |
7.0
7.0
9.0 |
8.0
9.0
10.0 |
11.0
11.0
12.0 |
150.4
160.4
170.5 |
167.6
177.6
190.5 |
120
120
120 |
105
110
105 |
180x201
190x211
200x224 |
33.0
33.0
38.0 |
30.0
30.0
34.8 |
111300
105000
134200 |
21300
24200
31000 |
236.00
255.00
310.00 |
7.0
7.0
7.0 |
9.0
9.0
8.0 |
10.0
10.0
11.0 |
12.0
12.0
13.0 |
180.5
190.5
200.6 |
200.5
210.5
223.4 |
120
120
120 |
105
110
105 |
210x234
220x244
230x257 |
38.0
38.0
43.0 |
34.8
34.8
39.5 |
127200
122100
164500 |
35000
38000
47000 |
333.00
345.00
408.00 |
7.0
7.0
7.0 |
9.0
9.0
10.0 |
11.0
11.0
12.0 |
13.0
13.0
14.0 |
210.6
220.6
230.6 |
233.4
243.4
256.4 |
120
120
120 |
110
110
105 |
240x267
250x280
260x290 |
43.0
48.0
48.0 |
39.5
44.0
44.0 |
157400
190000
182000 |
51000
52000
56500 |
425.00
415.00
435.00 |
7.0
7.0
7.0 |
10.0
10.0
10.0 |
12.0
13.0
13.0 |
14.0
16.0
16.0 |
240.6
250.8
260.8 |
266.4
279.2
289.2 |
120
100
100 |
110
89
89 |
270x300
280x313
290x323 |
48.0
53.0
53.0 |
44.8
49.0
49.0 |
177000
206000
222000 |
61000
72500
77500 |
450.00
520.00
535.00 |
7.0
7.0
7.0 |
10.0
11.0
11.0 |
13.0
14.0
14.0 |
16.0
17.0
17.0 |
270.8
280.8
290.8 |
299.2
312.2
322.2 |
100
100
100 |
89
89
89 |
300x333
320x360
340x380 |
53.0
65.0
65.0 |
49.0
59.0
59.0 |
214000
292000
272000 |
83000
114000
128500 |
555.00
710.00
755.00 |
7.0
10.0
10.0 |
11.0
15.0
15.0 |
14.0
20.0
20.0 |
17.0
25.0
25.0 |
300.8
321.0
341.0 |
332.2
359.0
379.0 |
100
100
100 |
89
89
89 |
360x400
380x420
400x440 |
65.0
65.0
65.0 |
59.0
59.0
59.0 |
258000
269000
256000 |
144000
160500
178000 |
800.00
845.00
890.00 |
10.0
10.0
10.0 |
15.0
15.0
15.0 |
20.0
20.0
20.0 |
25.0
25.0
25.0 |
361.0
381.0
401.0 |
399.0
419.0
439.0 |
100
100
100 |
90
90
90 |
420x460
440x480
460x500
|
65.0
65.0
65.0 |
59.0
59.0
59.0 |
244000
234000
224000 |
196000
215000
235000 |
935.00
980.00
1020.00 |
10.0
10.0
10.0 |
15.0
15.0
15.0 |
20.0
20.0
20.0 |
25.0
25.0
25.0 |
421.0
441.0
461.0 |
459.0
479.0
499.0 |
100
100
100
|
90
90
91 |
480x520
500x540
520x570
540x590 |
65.0
65.0
80.0
80.0 |
59.0
59.0
73.0
73.0 |
239000
229000
338000
326000 |
256000
278000
372000
400000 |
1070.00
1110.00
1430.00
1480.00 |
10.0
10.0
12.0
12.0 |
15.0
15.0
18.0
18.0 |
20.0
20.0
24.0
24.0 |
25.0
25.0
30.0
30.0 |
481.0
501.0
521.0
541.0 |
519.0
539.0
569.0
589.0 |
100
100
100
100 |
91
91
91
91 |
|
|
